Archived Protocols

Use Archived Protocols to manage archived analysis protocols and to view their analysis parameters. To open this page, select  Analysis Protocol on the sidebar menu and then select Archived Protocols.

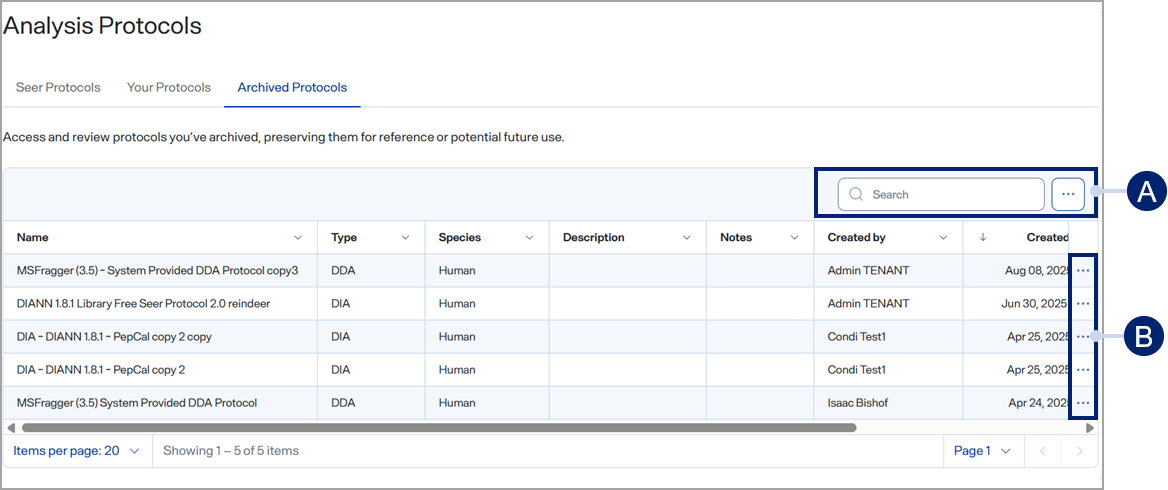

1. Toolbar items

2. Row menu items

Toolbar items

• Search — Use to find a specific item. See Search for table items.

• > Display columns — Select to choose which columns display on the table. See Show or hide table columns.

Row menu items

• >   — Select to archive the selected protocol. See Unarchive an analysis protocol.

Table columns

• Name — The name of the protocol.

• Type — The type of protocol (e.g., DDA, Proteogenomics).

• Species — The selected species for the protocol.

• Description — The description of the protocol.

• Notes — Additional information about the protocol.

• Created By — The user who created the protocol.

• Created Time — The date and time the protocol was created.

• Parameters — The name of the file in which the search engine parameters are defined. To view the search engine parameters for a protocol, select its row. See View the details of an analysis protocol.

• ID — The unique, internal identifier of the protocol.
